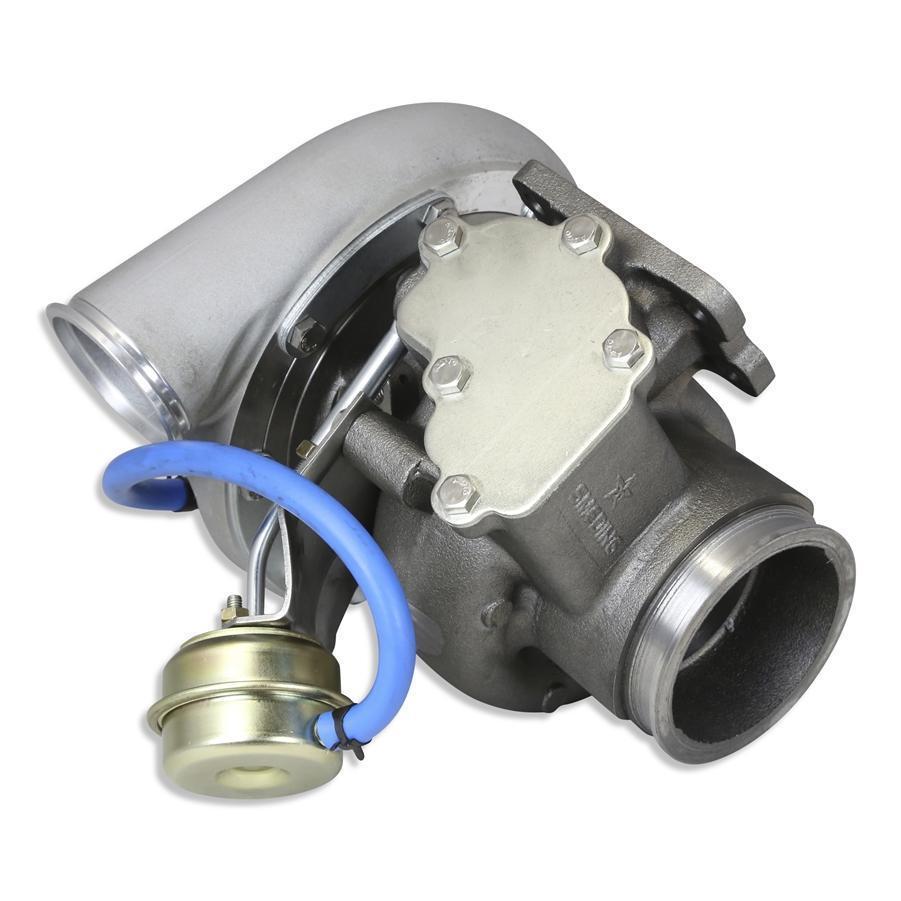

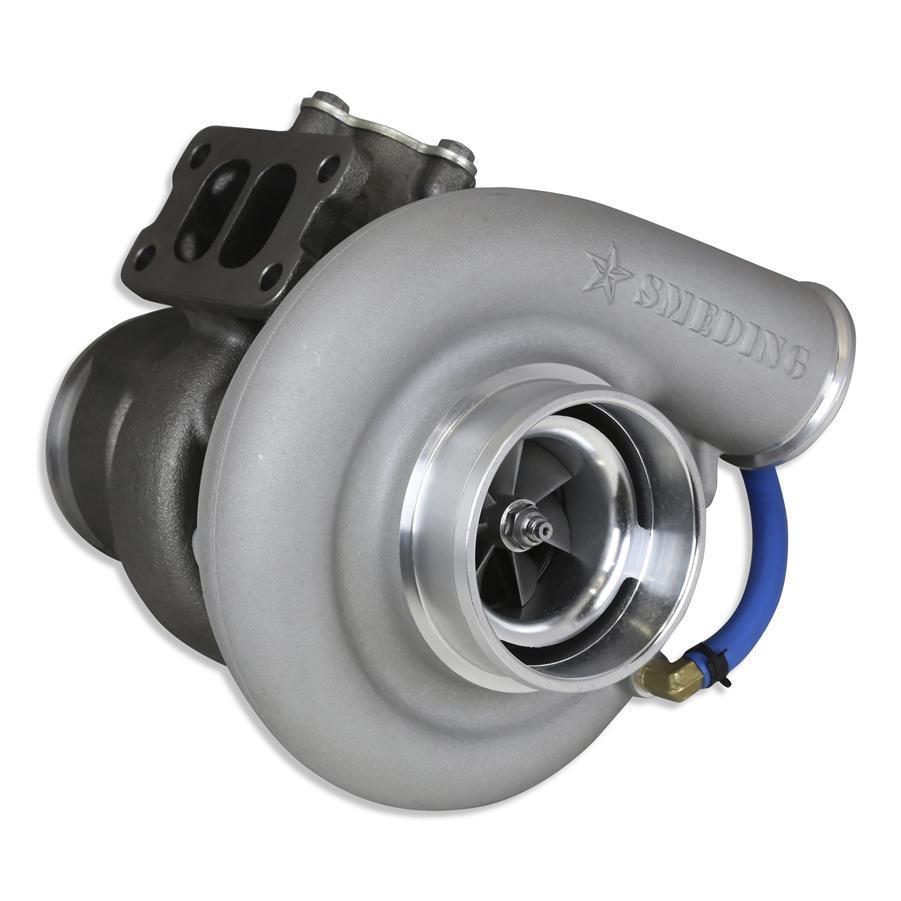

1994-2002 Cummins Billet S363 68MM Upgraded Replacement Turbo (9402B636814F)

Description

Fits

All Smeding Diesel Parts are Built To Order in Texas and are special orders, which can take longer than normal for fulfillment. If you're in a rush, contact us and we can make special arrangements.

Specially designed for the Cummins owner with larger fueling upgrades, but also wants a simple, yet effective bolt-on replacement turbocharger. This S363 features an extended tip 63mm billet compressor wheel with a 68mm turbine wheel, Twin Scroll Divided T3 Gated Housing in 14cm .80 or 12cm .70 A/R, and 36- 40PSI standard wastegate pressure with the ability to adjust it if desired. Fully capable of 600HP, effectively providing you with increased power, spool-up, and enhanced efficiency.

Part Number: 9402B636814F

Features

• Drop-in replacement
• Designed to handle mild to moderate fueling upgrades
• Equipped with an extended tip 63mm billet 6-blade compressor wheel
• Supports up to 600HP

• 68mm turbine wheel
• Exhaust housing: Twin scroll divided T3 gated housing available in 14cm .80 A/R. or 12cm .70 A/R
• Wastegate on both housings will be set to 36-40 PSI, which can be adjusted

Additional Info

Housing Size:

• 12cm housing will be faster spooling, but will get hot after long, wide-open throttle pulls due to the size
• 14cm housing will be a little slower spooling, but will handle wide-open throttle situations better
