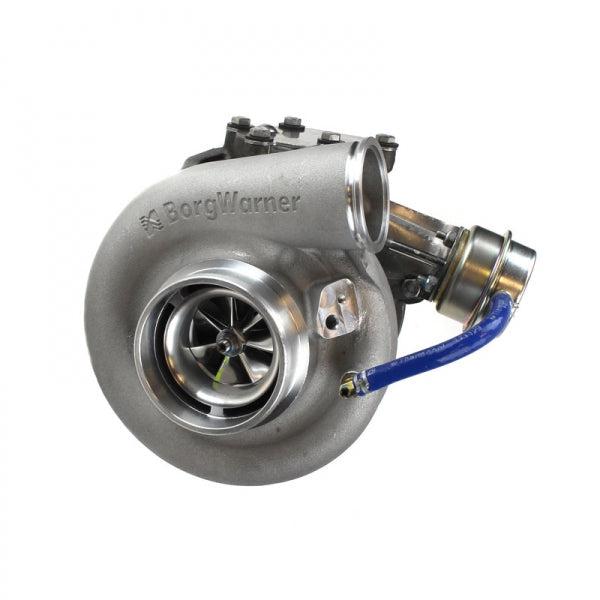

1994-2002 Cummins Viper PhatShaft Turbos (3622306801)

Description

Fits

The Industrial Injection Viper PhatShaft Series Turbos were designed to handle mild fueling upgrades to help increase overall performance and be perfect for towing, daily driving or street performance. The PhatShaft comes equipped with an extended tip 62mm, 63mm or 64mm forged milled compressor wheel and 360-degree thrust bearing. The PhatShaft utilizes the 68mm turbine wheel and is available in a 12cm or 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel. Like all PhatShaft turbochargers, it is equipped with dual grooved high-performance bearings and an adjustable boost elbow. Industrial Injection recommends the 12cm Housing for 12 valve and 24 valve trucks for faster spool up.

Part Number: 3622306801

Features

• Increased Performance
• Lower EGTs
• Designed For Towing & Daily Driving
• 62mm,63mm or 64mm Compressor Wheel
• 68mm Turbine Wheel
• (FMW) Forged Milled Compressor Wheel
• 360* Thrust Bearing
• Dual Grooved High-Performance Journal Bearings
• Drop-In Replacement Turbo

Notes

• Requires HX40 Downpipe
• Depending on the factory oil drain configuration it may need to be slightly modified to clear the wastegate rod.
