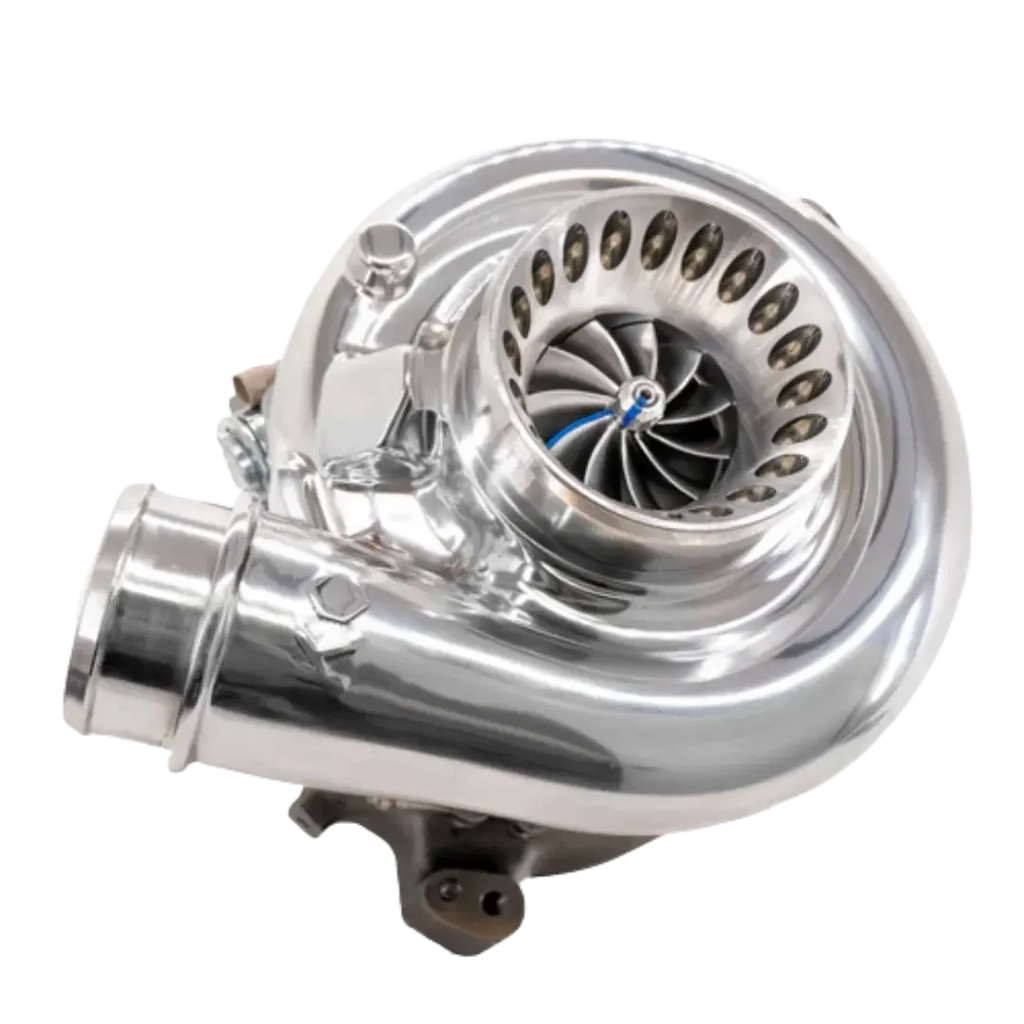

2003-2007 Powerstroke KC Jetfire Stage 1 (61/64) Turbocharger (300017)

Description

Fits

Power: 450-550HP

Supports: Up to 175cc/30% injectors

Turbo Whistle: Loud Whistle or No Whistle

The Stage 1 61/64mm Jetfire Turbocharger is perfect for those wanting to maximize the performance of stock injectors. This specially designed turbo is ideal for heavy towing and provides quicker spool and more power without the lag of larger stage 1.5/pmax/S2 turbos. It works best with moderate injector sizes (stock or 155cc) but can still handle 175cc with slightly less top-end on a heavy race tune.

Part Number: 302533, 300262, 302535, 300243, 302534, 300021, 302536, 300017

Features

• 450 to 550 HP w/ supporting mods
• KC Turbos redesigned 61mm single-plane point-milled billet wheel w/ extended tip technology
• KC redesigned Jetfire 64mm 10-blade quick spool turbine wheel
• Optional 9, 10, 11 & 13-blade turbine wheel
• Upgraded 360° thrust bearing
• 100% drop-in (No Mods Required)
• New VGT Solenoid
• NO CORE required
• Install kit included

Instructions

• Click Here

Notes

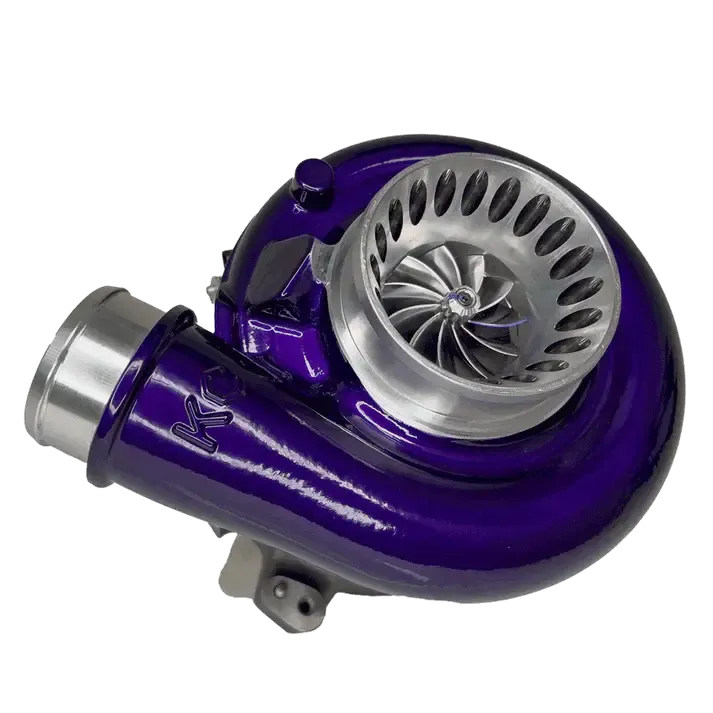

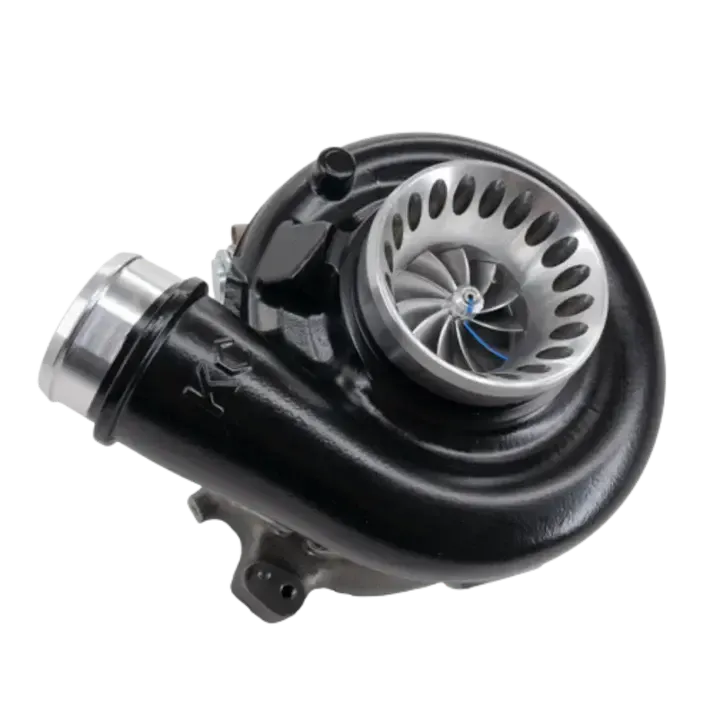

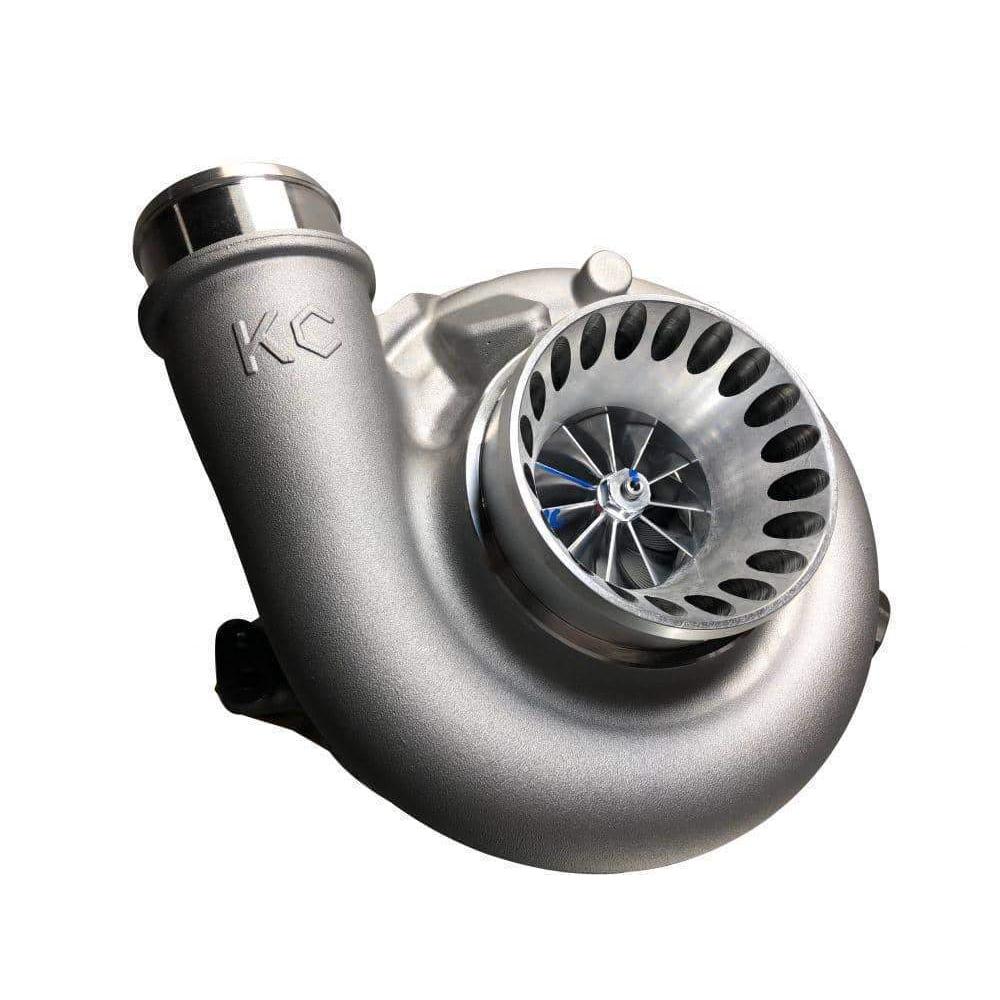

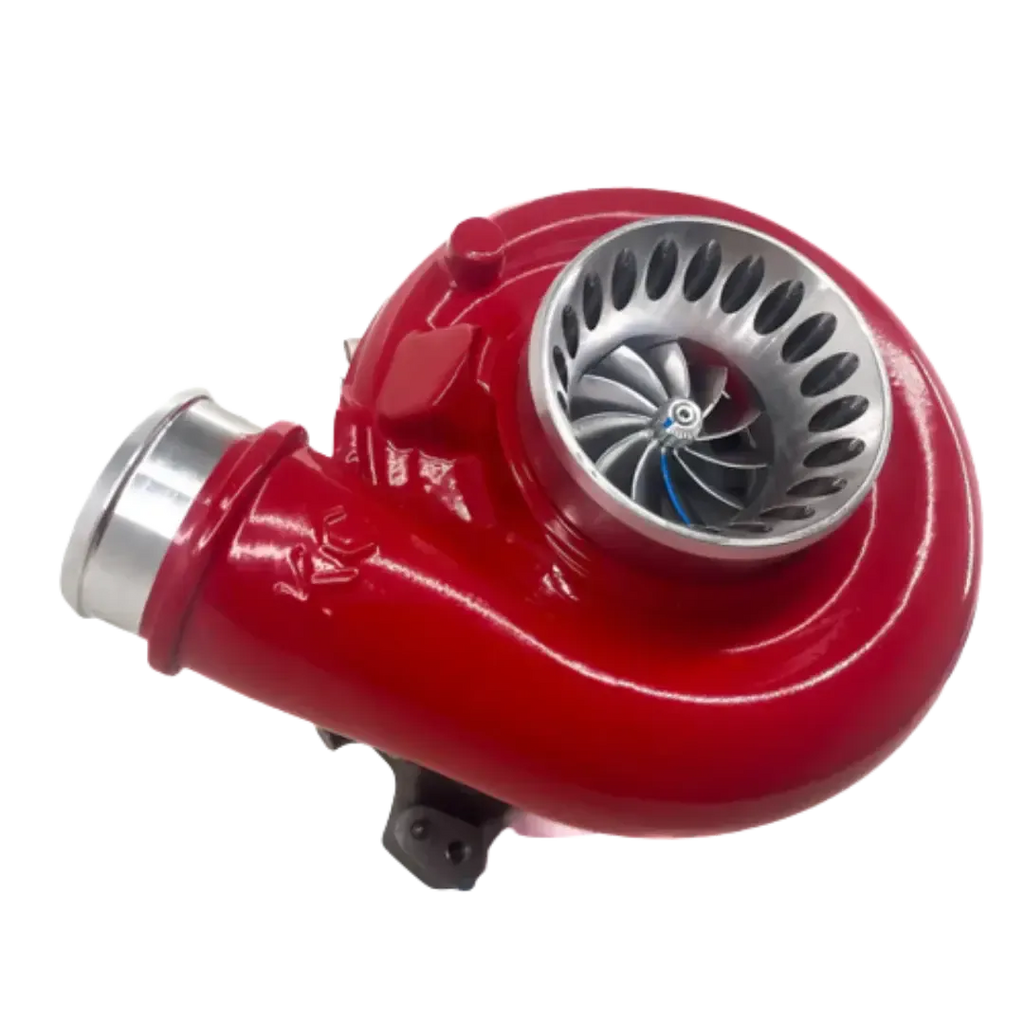

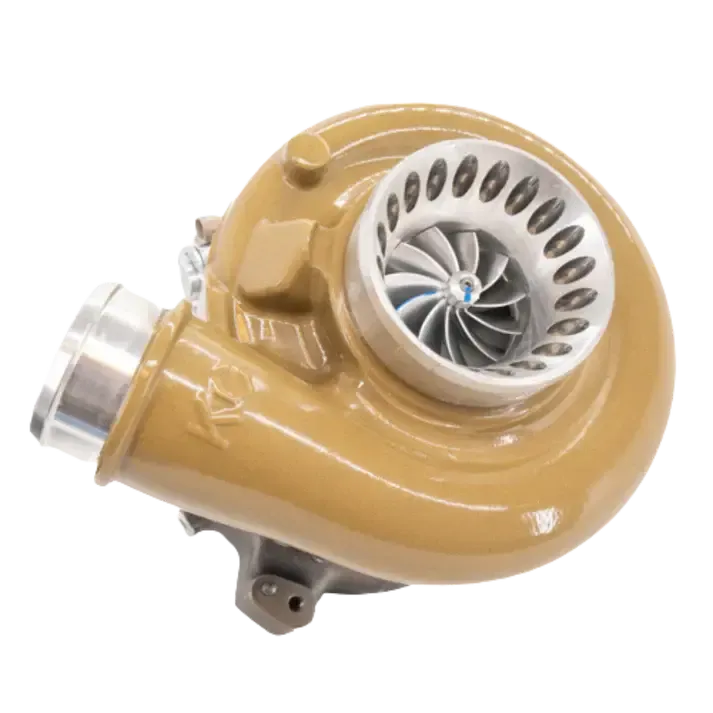

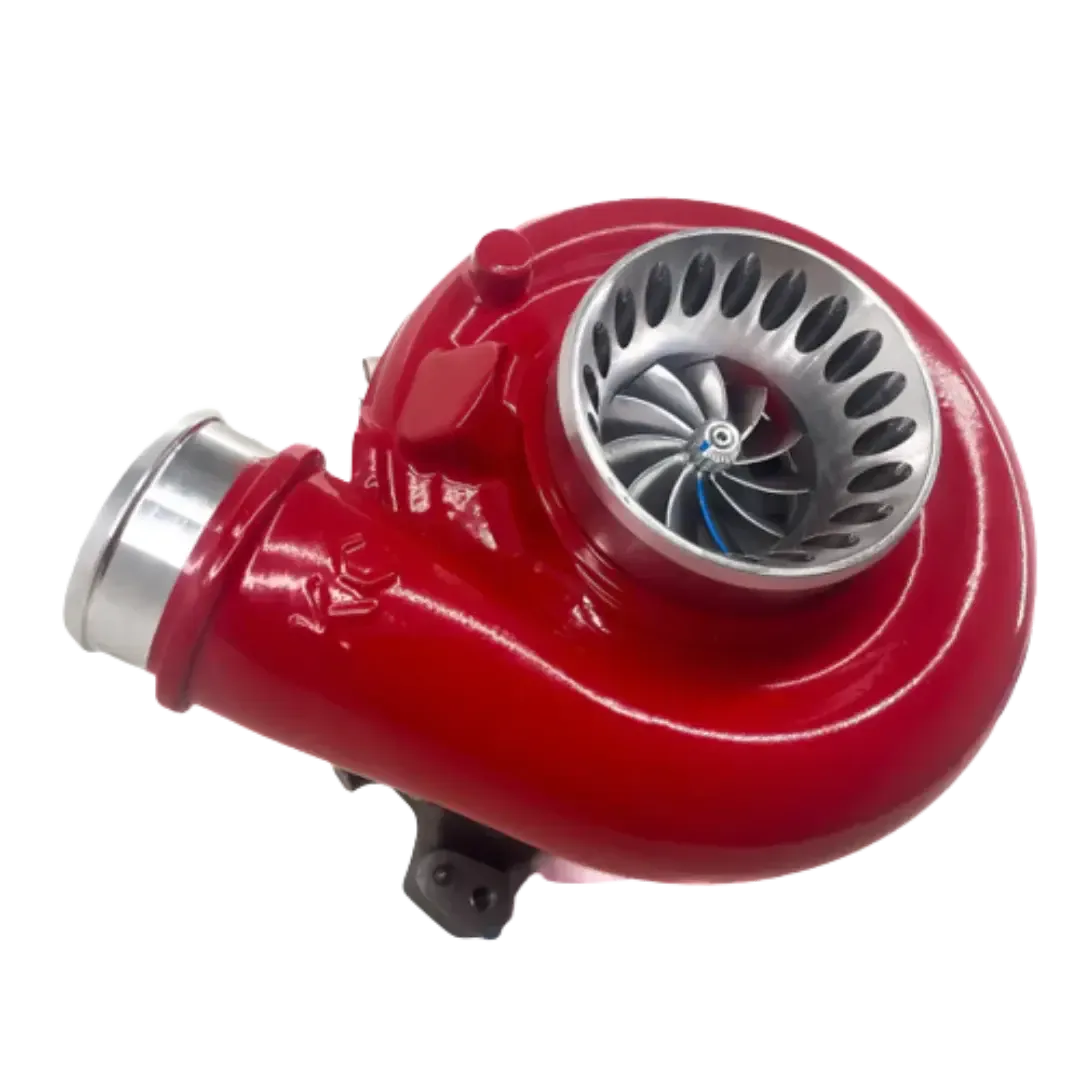

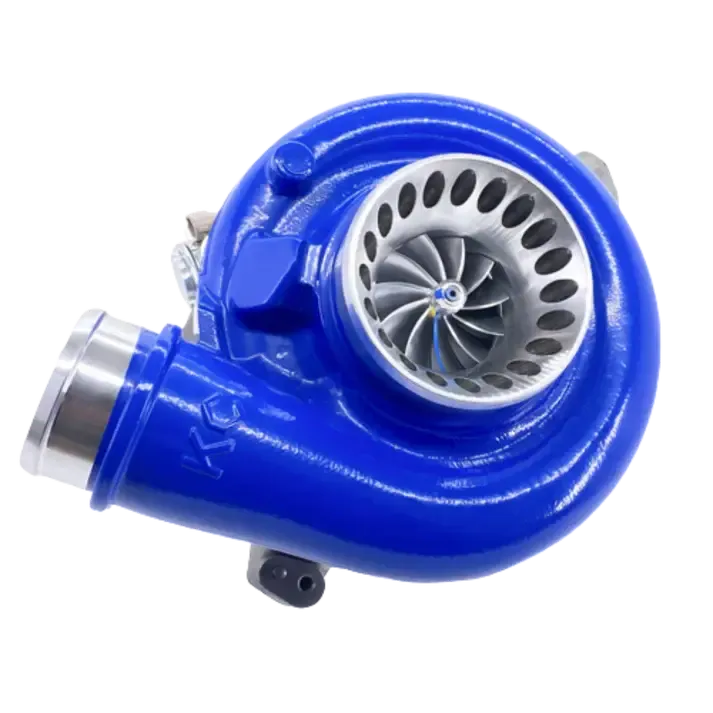

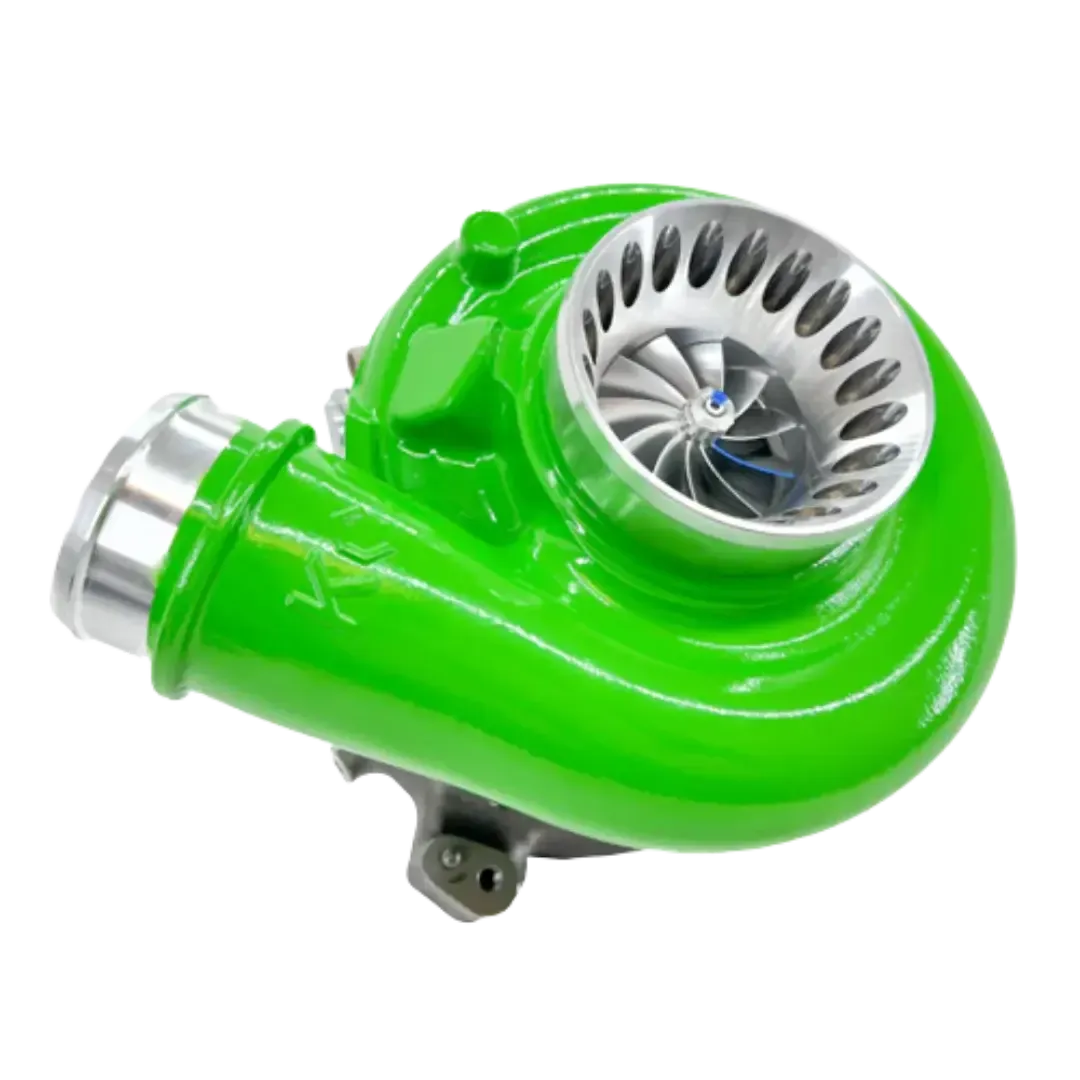

• These turbos come with a standard finish unless specifically requested. You can add a polished/custom color cover for an additional fee.
• Custom Tuning is highly recommended

• These turbos are based on the 2004-2007 turbo mounting bracket style. In order to run this on a 2003 pedestal, the 3rd mounting bracket on the back of the turbo will have to be cut off.
• EXHAUST BRAKES: Do exhaust brakes work with KC turbos? KC Turbos has found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues.  These brakes typically use some sort of flapper to close, which causes extreme exhaust back pressure to aid in braking.  This can be hard on a turbo and motor and is not recommended.  It will be up to the customer to verify fitment and functionality.

Warranty

• 1-Year Unlimited Miles Limited Warranty
