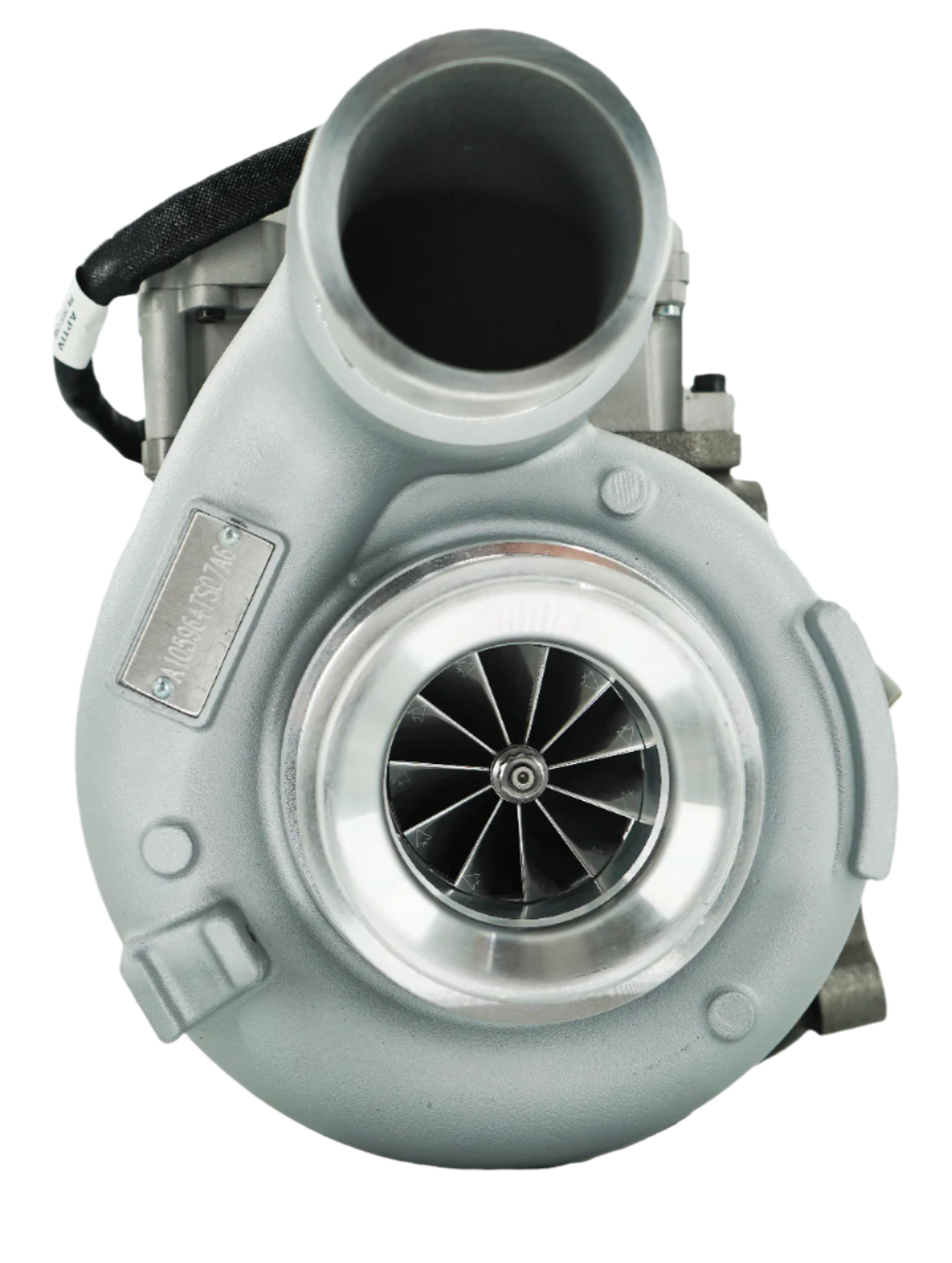

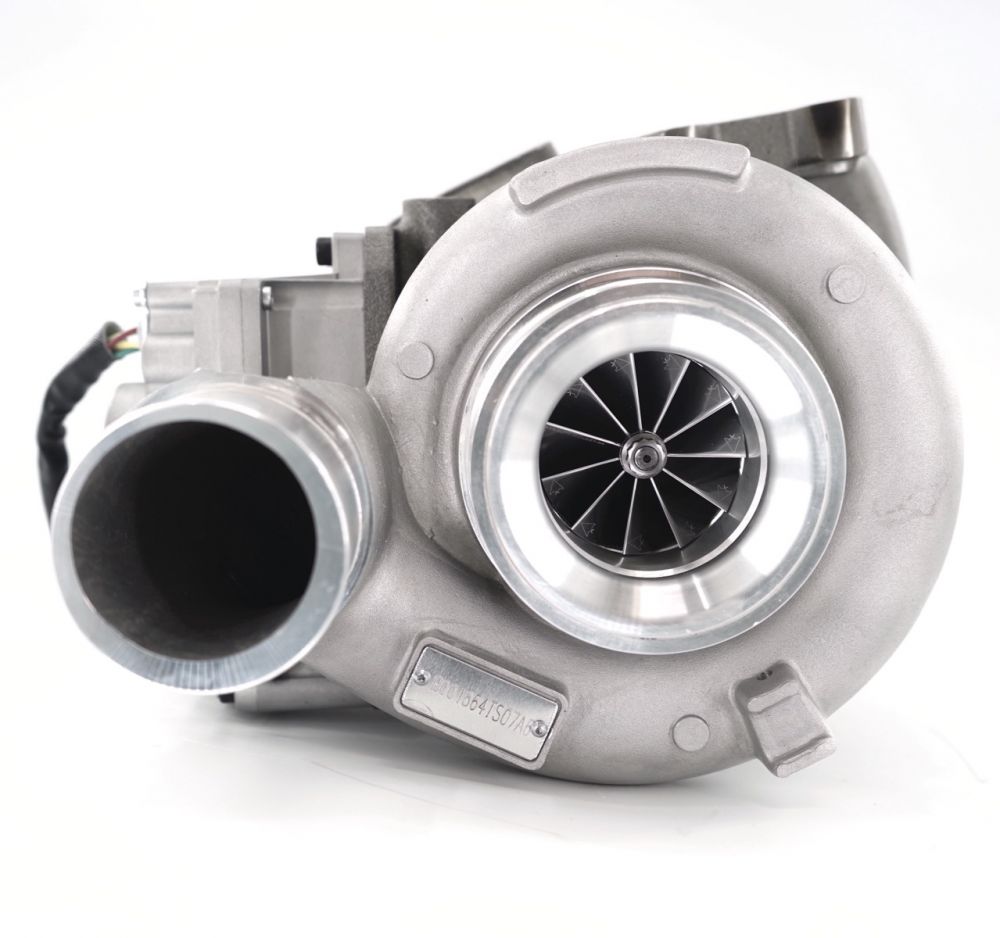

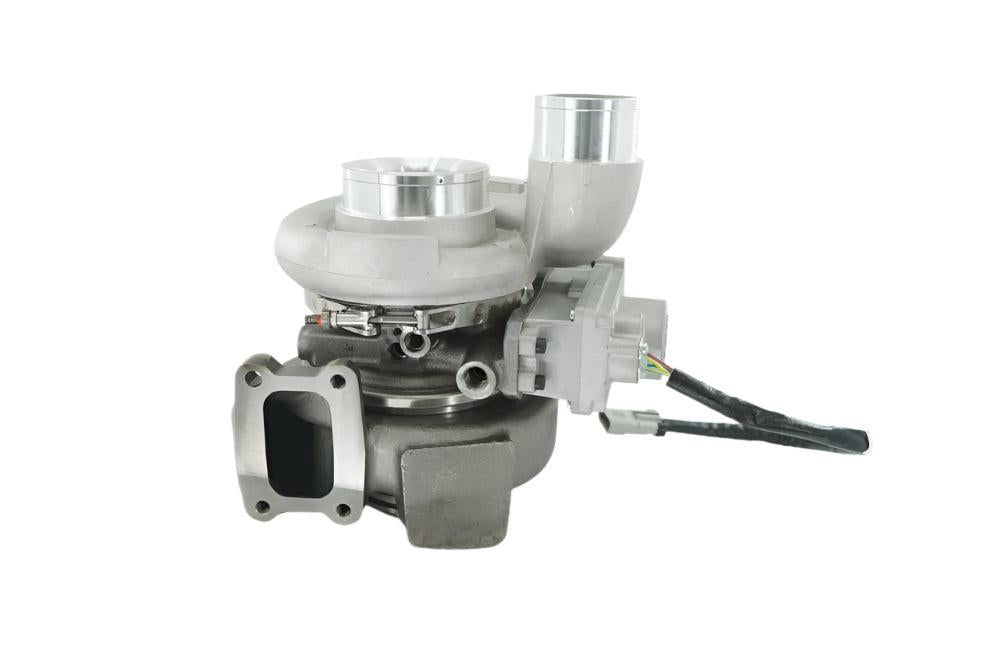

2010-2012 Cummins HE351VE Stealth Mach 1 64 Turbocharger (DM1CD2080203000)

Description

Fits

With an upgraded compressor wheel, turbine, and variable geometry nozzle assembly this turbo has the ability to move 30% more air through it than stock. This gives you a better drive/boost pressure ratio, faster spool up, and lower EGT's; so if you tow heavy loads on a regular basis, this is the turbo for you.

Part Number: DM1CD2080203000

Features

• Airflow to Support up to 700+ RWHP
• Tested up to 600 RWHP with stock emissions equipment and tuning
• 30% more airflow available compared to stock
• 41+psi boost capable at sea level
• Pre-calibrated 100% Genuine Holset actuator
• No core charge
• No custom tuning

Additional Info

Custom Billet Compressor Wheel

• 63mm, 11-Blade Wheel eliminates surge while towing
• Made from the highest quality 7075 Aluminum
• Tow without any risk of surge (even while lugging)
• Lightweight and high strength
• Expertly balanced to ensure longevity

Custom Oversized Turbine Wheel

• 25% larger inducers
• 30% Larger exducers
• Custom higher efficiency blade design
• Low drive pressures at high load
• Better EGT control and lower EGT's
• Distinct Stealth exhaust sound

HFV (High Flow Vane) Technology

• Only found in select Stealth turbochargers
• Custom, billet vanes and nozzle ring assembly
• Exclusive design produced in-house specific to this application
• Taller and wider vanes match larger turbine to provide superior high-load efficiency
• Retain factory exhaust brake and quick throttle response
