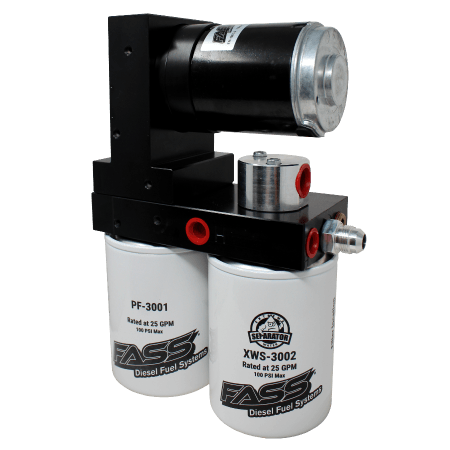

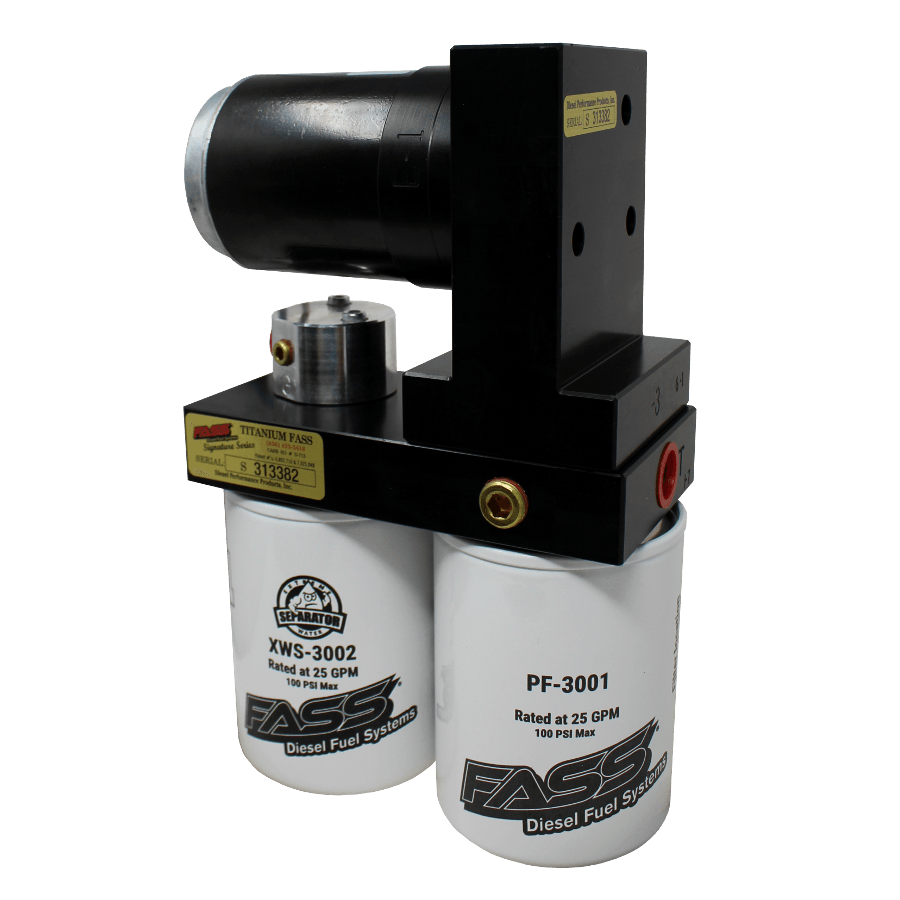

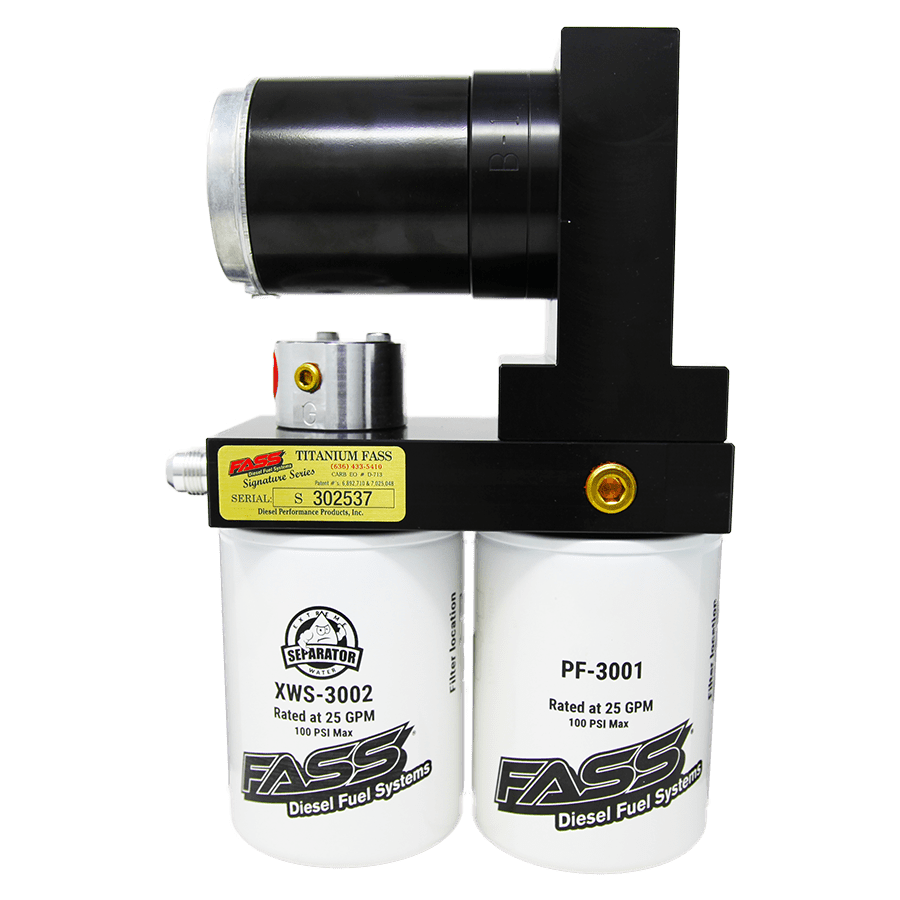

2020-2024 Duramax Titanium Signature Series 140GPH Lift Pump (TSC15180F140G)

Description

Fits

Power Rating: Stock -500HP

Preset Fuel Pressure: 70-75 PSI

Flow Rating: 140 GPH

Filter Life Expectancy: 30,000 Miles

Filtration Rating: 2 Micron

FASS Titanium Signature Series 140GPH Lift Pump delivers top-tier filtration for your 2020-2024 Duramax. With 2-micron filtration, water separation, and air removal, it protects expensive injectors while supporting multiple fueling upgrades. Backed by a lifetime warranty, it's the solution to common Duramax injector failures.

FASS has taken the time to perfect its System before letting it hit the market, and because of this, they have less than a 2% failure rating with its motor and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

Part Number: TSC15180F140G

Features

• New Bolt-On Bracket Installation
• Preset 70-75 PSI Fuel Pressure
• Complete Replacement System
• 140 Gallons Per Hour Flow Rating
• Removes Water, Air and Debris From Diesel Fuel
• 2 Micron Filtration Rating
• Protects and Extends The Life Of Your Injectors
• Improved Cold Weather Starts
• Decreases Carbon Monoxide and Carbon Dioxide Emissions
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Optional Electric Heater Ports
• Optional Fuel Pressure Gauge Port

• 30,000 Mile Filter Life Expectancy
• Quietest Motor On The Market

Installation

• Click Here

Notes

• This Fuel System REQUIRES aftermarket tuning to be compatible.

Additional Info

FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high-quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Titanium Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Their competition reduces noise levels by reducing flow rates.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation, along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR, in combination with the optional FASS Fuel Heater options, will help ensure “EXTREME” cold weather operations!

Warranty

Parts Only

• Limited Lifetime Warranty
