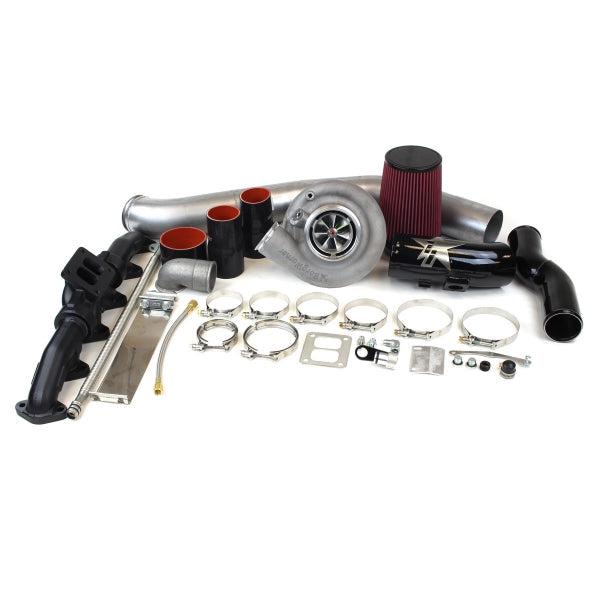

2010-2012 Cummins S300 SX-E Single Turbo Kit (22BXXX)

Description

Fits

The Industrial Injection 6.7L Cummins S300 SX-E Single Turbo Kit utilizes the extremely popular S300 SX-E turbo and center mounts it on a high flow T4 manifold in a 2nd gen style application. The new SX-E turbos come standard with an upgraded 360* thrust bearing and FMW (Forged Milled Wheel) to provide you with ultimate performance and reliability. This kit offers multiple turbo options to allow you to perfectly set up your truck exactly how you want it.

Part Number: 22BXXX

Features

• Performance and Reliability
• Lower EGTs
• Multiple Turbo Options
• Complete Install Kit
• High Flow HX40 Downpipe

Turbo Dimensions:

• 62/74 SX-E (up to 600hp) Mild Performance
• 63/74 SX-E (up to 625hp) Mild Performance
• 64/74 SX-E (up to 650hp) Mild Performance / Race
• 66/74 SX-E (up to 750hp) Mild Performance / Race
• 69/74 SX-E (up to 850hp) Mild Performance / Race

Turbine Housing Options:

• 0.88 A/R T4 Single Scroll (Mild Performance)
• 0.91 A/R T4 Twin Scroll (Mild Performance) Most Popular
• 1.00 A/R T4 Twin Scroll (Mild Performance / Race)

Notes

• All Industrial Injection Performance Products Are Not Legal For “On-Road”, “Off-Road”, or “Dual-Use”. These Products May Only Be used In “Closed Circuit Competition Only” Vehicles.
