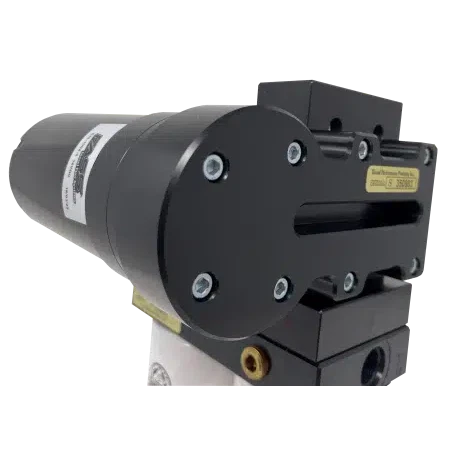

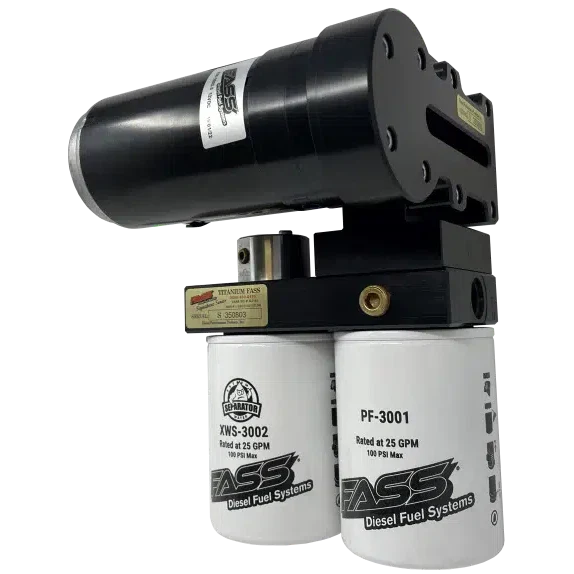

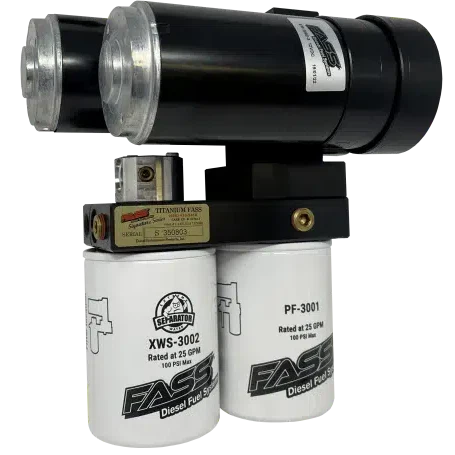

Universal Competition Series 540GPH Lift Pump (COMP540G)

Description

Fits: Universal

Specially designed for high-performance diesel applications that demand a vast volume of fuel.

Part Number: COMP540G

Features

• Supplied with Our Universal Mounting Bracket

• Pressure Adjustable from 0-70 PSI

• -10 AN Inlet, Outlet, and Pressure Regulator Ports

• Removes Water, Air and Debris from Diesel Fuel

• 2 Micron Filtration Rating

• 1/8 NPT Pressure Gauge Port

• Easier to prime than a mechanical gear System

• 70 PSI Maximum Pressure

• 1,000,000 Mile Motor

Additional Info

Flow Rates:

• 540+ Gallons Per Hour at Free Flow (0 PSI)
• 540+ Gallons Per Hour at 10 PSI
• 540 Gallons Per Hour at 20 PSI
• 522 Gallons Per Hour at 30 PSI
• 516 Gallons Per Hour at 40 PSI
• 504 Gallons Per Hour at 50 PSI
• 486 Gallons Per Hour at 60 PSI
• 468 Gallons Per Hour at 70 PSI


Notes

• 2 WH-1006-3R can be purchased to power the FASS Competition Series motors if you do not wish to build a custom wire harness
• Does not come with fuel lines, wiring, or fittings
• Electrical Requirements: Each motor will need a 30 amp fuse and we recommend 10 gauge wiring to each motor. Each electric motor can draw up to 10 amps max.
• Fuel Line Requirements: A single -12 suction line is recommended while a -8 or -10 engine feed and FASS return line is sufficient
