Universal FASS Connect Digital Monitoring System (FC2001K)

Description

Fits: Universal Applications, Ford Powerstroke, GM Duramax, and Dodge RAM Cummins

Take the guesswork out of your fuel system's health with the FASS Connect Digital Monitoring System, providing real-time data on filter life and fuel pressure for any Powerstroke, Cummins, or Duramax application. This wireless setup cleans up your cab by eliminating messy wiring while letting you trigger heaters or accessories directly from your smartphone. Specifically designed to integrate seamlessly with FASS Fuel Systems, this kit ensures your high-performance diesel stays protected and performing at its peak across all diesel platforms.

*This system is specifically designed to integrate with FASS Fuel Systems.

Part Number: FC2001K

Features

• Wireless ECU Connectivity
• Real-Time Filter Monitoring
• Five Expandable Sensor Inputs
• Dual Relay Trigger Outputs
• High-Definition Digital Gauge
• Integrated Smartphone App Control
• Simple Plug-and-Play Install

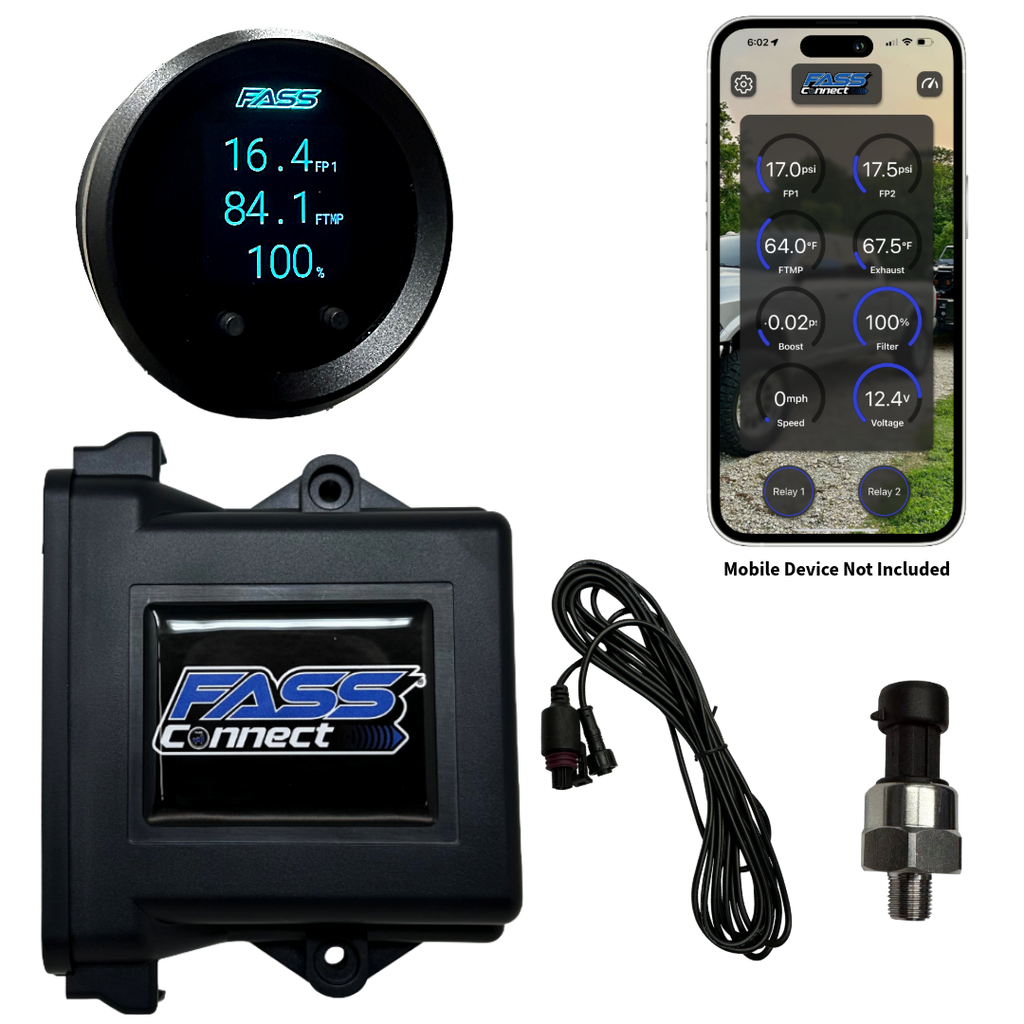

Includes

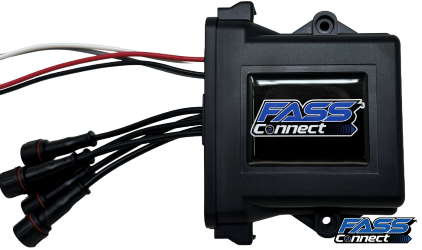

• 1 x FASS Connect ECU
• 1 x 2-1/16” FASS Connect Gauge
• 1 x 0–100 PSI Fuel Pressure Sensor
• 1 x 15’ Fuel Pressure Sensor Harness
• 2 x Ring Terminals
• 1 x Micro add-a-fuse and corresponding fuse
• 1 x Mini add-a-fuse and corresponding fuse

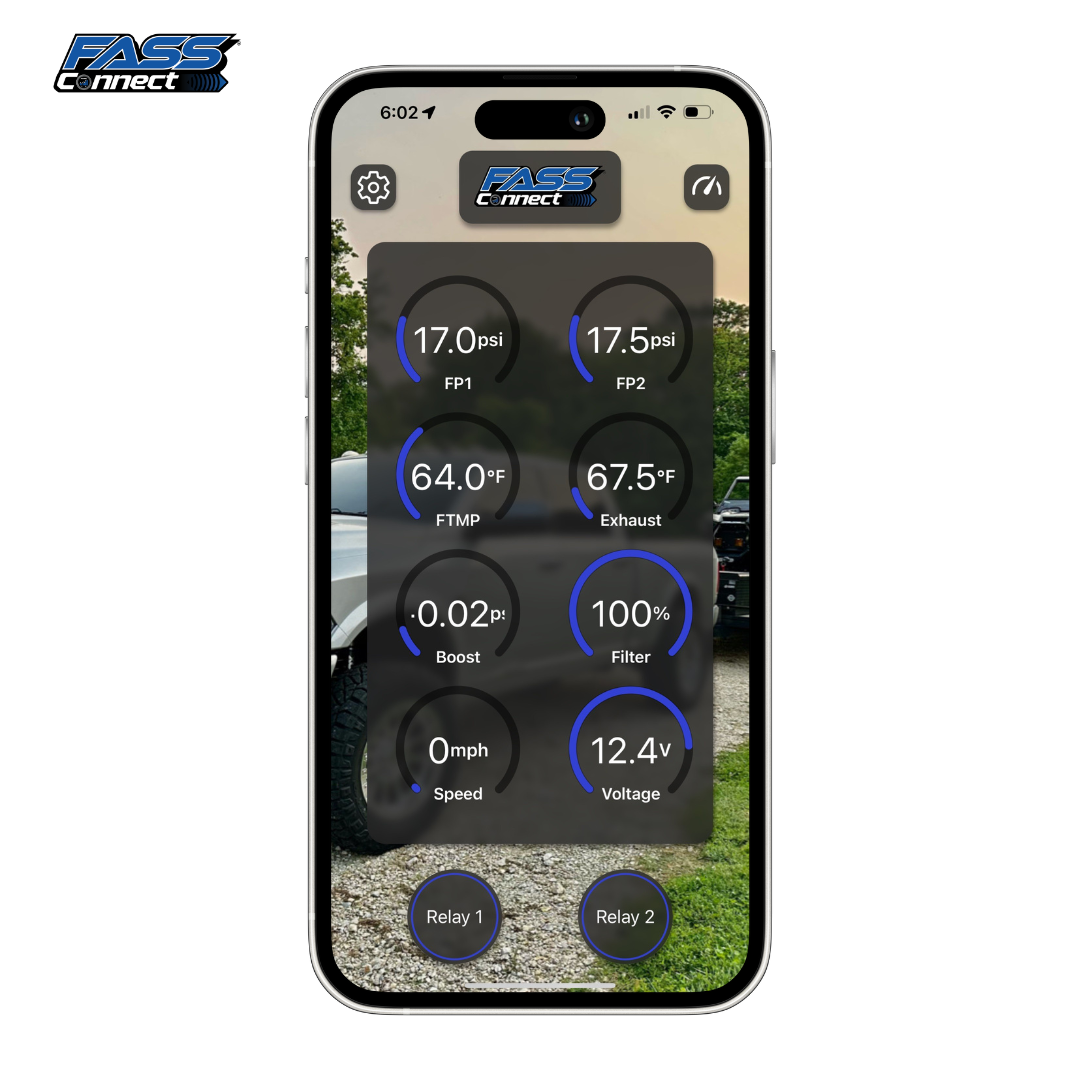

• FASS Connect App is available for free and can be downloaded on the Apple App Store or Google Play Store.

Notes

• Safety Warning: For safety purposes, please do not change or modify settings in the FASS Connect App while driving. We strongly recommend securing your phone to a mount for hands-free operation while the vehicle is in motion.
• To unlock the "Real-Time Filter Life" feature, the system requires two pressure sensors (one for the inlet, one for the outlet). This kit includes one sensor.
• This is the FC2001K, which includes the physical 2-1/16” Gauge. This differentiates it from the "Lite" version (FC3001K), which is app-only.
• The ECU features 5 sensor inputs. Since only one is used for fuel pressure in this base kit, it can be expanded into a full digital dash by adding EGT (FC1004K) and Temperature (FC1003K) sensors.
• Includes 2x Relay Trigger Outputs. These allow users to power on FASS Fuel Heaters or auxiliary accessories (such as light bars) directly through the FASS Connect App.
• The ECU communicates wirelessly to the gauge and app. This makes it an ideal solution for long-wheelbase trucks, chassis cabs, or RVs where running physical wires from the engine/chassis to the cab is difficult or time-consuming.

Videos

Installation

Click Here For Instructions
